mutable muzzy musics

technical requirements of the installation

updated 07.04.2001

there are two versions of the mutable muzzy musics installation. the big setup and the small setup.
for basic information of mmm check the mutable muzzy musics main page.

big setup:

the big setup consists of:
3 controller
1 display
1 projection
pair of speakers

hardware/software supplied by involving systems:
- macintosh G4 400 / 64 mb ram (1*64 mb), 20gb harddisk, keyboard, mouse
- 17" mulitisync display
- 3 controller
- analog to midi converter
- usb midi interface
- wintel machine PentiumIII / 500 mhz / 128MB ram / 10gb harddisk, keyboard, mouse / windows 98 SE
- soundcard with midi adapter
- case for the analog to midi converter (where the display sits on top)
- case for the pc and mac computer
- beanbags to sit on

hardware/software supplied by venue / organizer / promoter:
- extra room for the installation, which is dark (for projection)
- power supply
- data projector with vga input, 1024x768 pixels resolution (not interpolated)
- vga extension leads from pc to projector
- 1 sufficient stereo amp
- audio extension leads (rca output)
- 2 big speakers

floorplan
cabeling plan

image below:

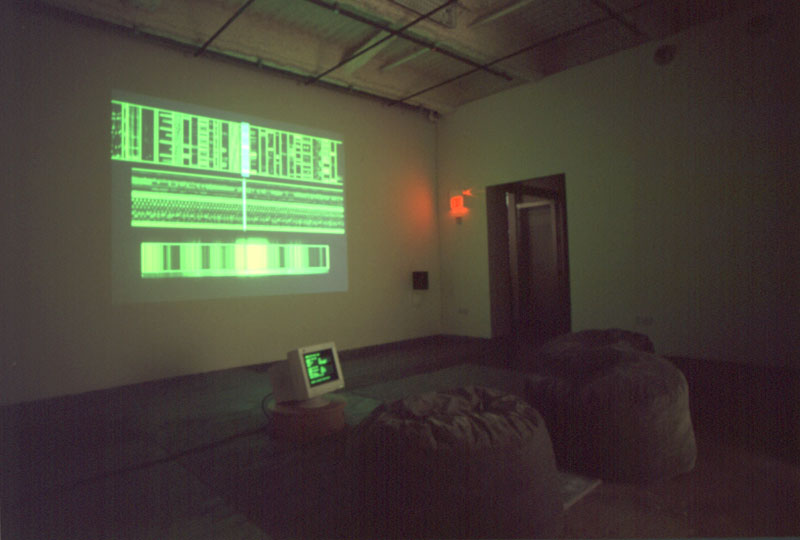

big setup at california college of arts and crafts, san francisco.

small setup:

the small setup consists of:
3 controller
1 display
5 headphones

hardware/software supplied by involving systems:
- macintosh G4 400 / 64 mb ram (1*64 mb), 20gb harddisk, keyboard, mouse
- 17" mulitisync display
- 3 controller
- analog to midi converter
- usb midi interface
- case for mac, converter and headphone amp (where the display sits on top)
- 5 headphones
- beanbags to sit on

hardware/software supplied by venue / organizer / promoter:
- enough space for the setup
- power supply at that space

measures:
circular box: 74,5 cm diameter x 53,5 cm hight
beanbags or ather seats: 60 cm diameter
all in all: 2 m x 2 m

image below:

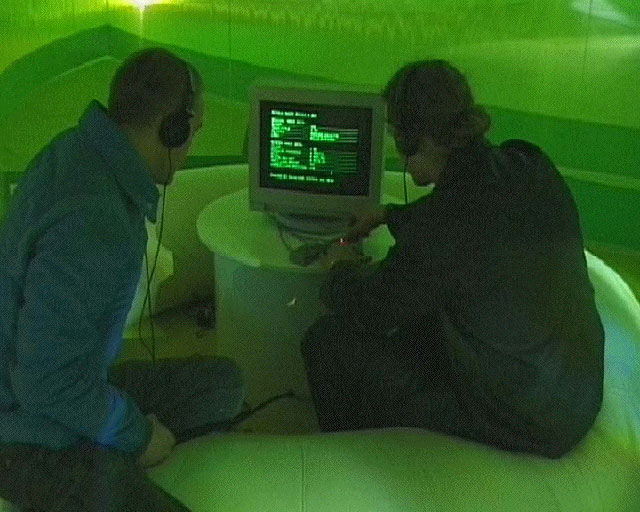

small setup at expo2000, scape.

*
